10 Gene map viewer

Visualizing genes distribution along chromosomes/scaffolds/contigs for checking gene clusters.

10.1 Choose options for each required parameters step by step

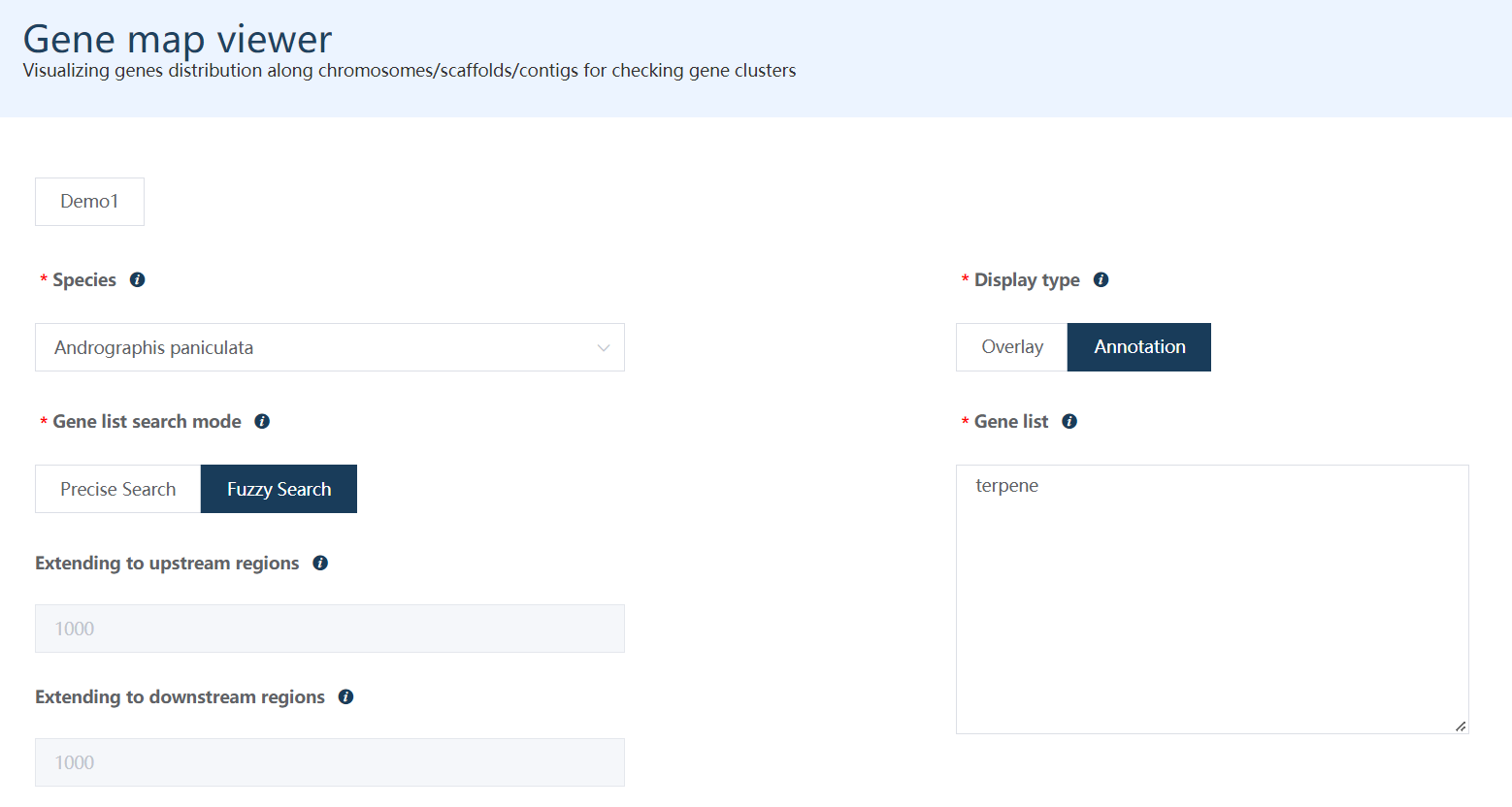

Just select each parameter sequentially as labeled in the figure (or simply just click the Demo1, and Demo2 buttons).

Figure 10.1: A screenshot of the one type of selection for Gene map viewer.

Clicking Submit, after several seconds, one Gene map viewer plot is generated below.

Note

Mousing over the plots would see the names of each gene.

Figure 10.2: The top plot shows the GSEA enrichment profiles of two top-enriched pathways. Vertical lines representing leading-edge genes. The bottom plot shows the rank distribution of all genes (actually only top 500 and bottom 500 genes are shown to accelerate the result loading).

10.2 Overlay and annotation mode

Users are allowed to choose the display mode: Overlay or Annotation.

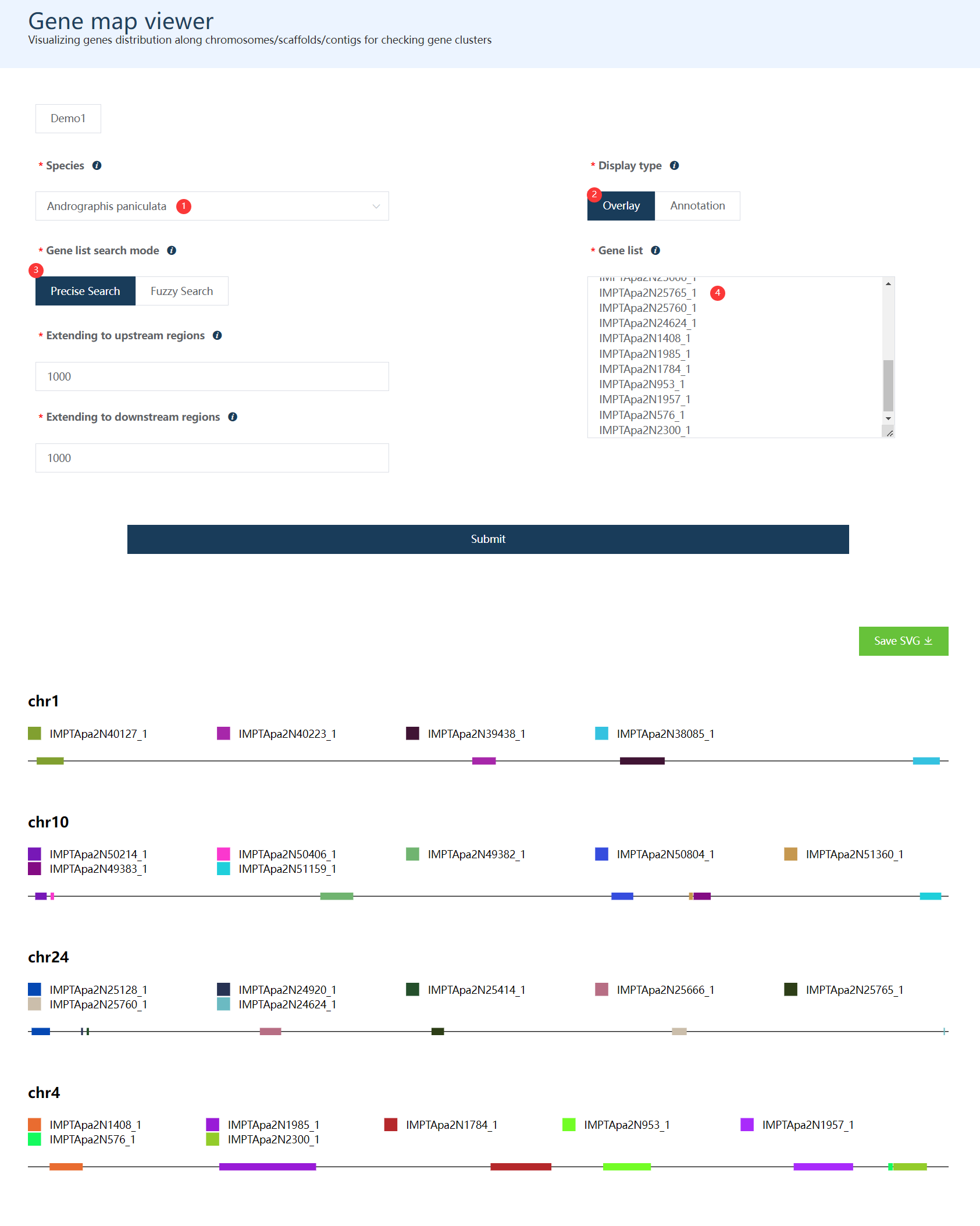

1. Overlay: zooming in to the region which just covers user input genes.

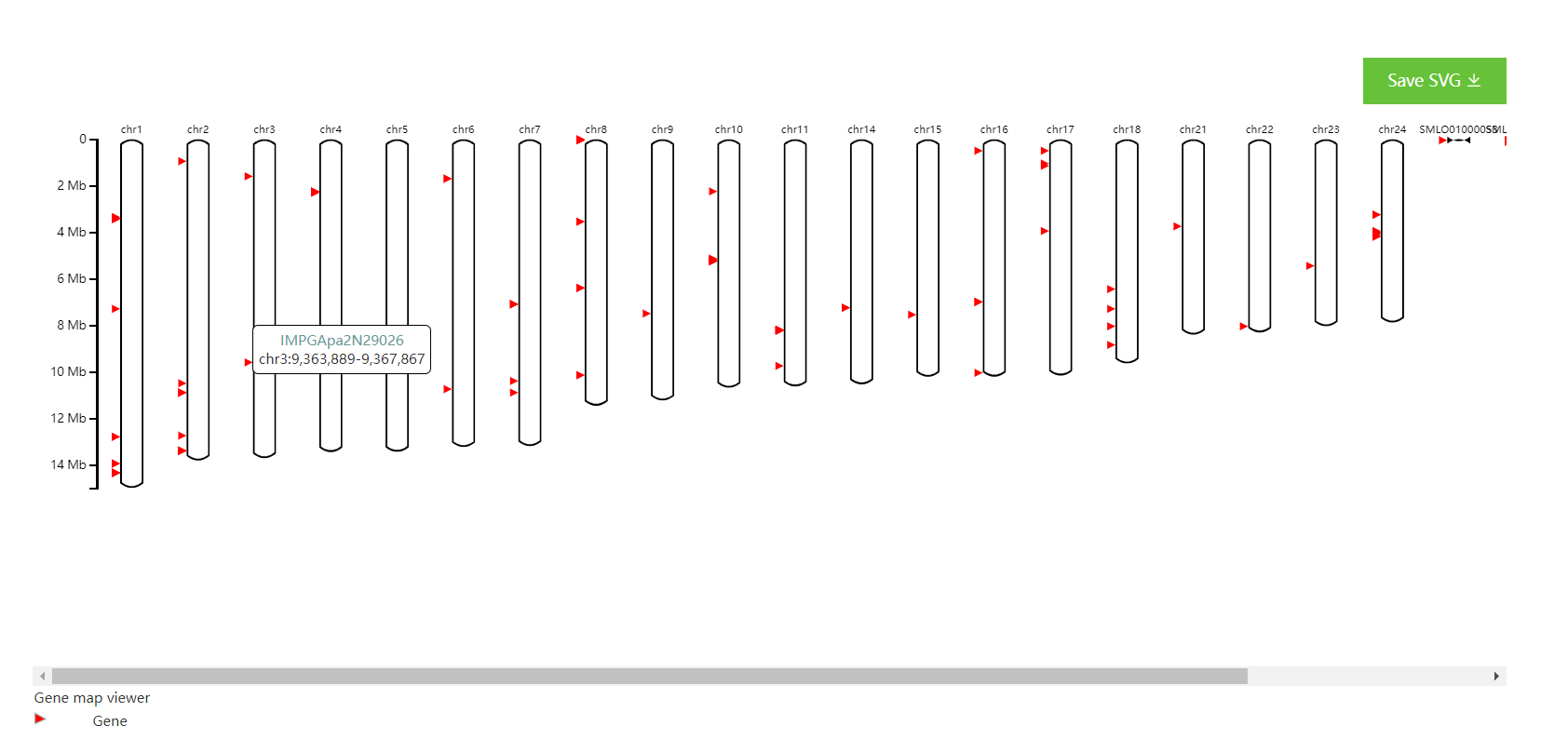

2. Annotation: showing gene distribution at the whole chromosome level (only chromosomes containing user input genes would be shown)

Note

The order of legend is similar to their positions in the chromosome/scaffold.

Note

Users could check gene detail information in IGV Browser by clicking gene names in the plot.
